Fibre Optic Cables

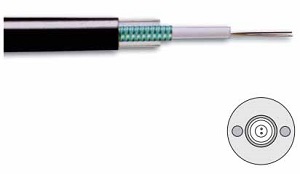

Unitube Fibre Optic Cables

Specifications

Compact Universal cables used for direct burial:
  • Accurate fbre excess length
  • Specially designed compact structure and PE sheath
  • Crush resistant and flexible
  • PSP enhances the cable’s crush-resistance, impact-resistance and moisture proofng
  • Two parallel steel wires ensure tensile strength
  • Small diameter, lightweight and hassle-free installation
  • Long delivery length

Performances

  • OM2 50/125 compliant with ITU G.651, IEC 60793-2-10 Type A1a.1 and ISO/IEC11801:2002 Amd.2 OM2
  • OS1 9/125 compliant with ITU G.652.D, IEC 60793-2-50 Type B1.3, ISO/IEC 11801:2011 Ed2.2
  • Cable mechanical characteristics tested according to IEC 60794-1


OS1 9/125
Type Length Ref No.
4 fbre, OS1 9/125, Unitube Light Armoured2000mACTUDUTLA04SM9
6 fbre, OS1 9/125, Unitube Light Armoured2000m ACTUDUTLA06SM9
8 fbre, OS1 9/125, Unitube Light Armoured2000mACTUDUTLA08SM9
12 fbre, OS1 9/125, Unitube Light Armoured2000mACTUDUTLA12SM9
24 fbre, OS1 9/125, Unitube Light Armoured2000m ACTUDUTLA24SM9


OM2 50/125
Optic Fibre Outdoor OM2 50/125 micro meter multimode fbre
Type Length Ref No.
4 fbre, OM2 50/125, Stranded Loose Tube Armoured2000m ACTUDSLAM04MM5
6 fbre, OM2 50/125, Stranded Loose Tube Armoured2000m ACTUDSLAM06MM5
12 fbre, OM2 50/125, Stranded Loose Tube Armoured2000mACTUDSLAM12MM5
24 fbre, OM2 50/125, Stranded Loose Tube Armoured2000mACTUDSLAM24MM5


FL-C Loose tube Fibre optic cables

Specifications

  • Compact and universal cables suitable for indoor and specifc outdoor installations:
    • Low Smoke Zero Halogen (LSZH) green coloured external sheath
    • UV resistant
    • dielectric
    • high tensile strength
    • rodent retardant
    • longitudinally watertight
  • Maximum pulling force: 1500 Newton (1800 Newton for 24FO)
    • longitudinally watertight
  • Rodent protection:
  • Minimum bending radius: OD x 10 (ex: 62mm for 6,2mm OD)
  • Ambiant air temperature (minimum & maximum)
    • for installation: -5° … +50°C
    • for operation: -20°… +70°
    • for storage: -40° … +70°
  • Loose tube gel-flled cable construction with 250 µm coating available in unitube structure for 4, 6, 8 and 12 fbres and bitube structure for 24 fbres.
  • Flame retardant according to IEC 60 332-1, EN 50 265 2.1, NFC 32 070 2.1.

Performances

  • OM2 50/125 compliant with ITU G.651, IEC 60793-2-10 Type A1a.1 and ISO/IEC 11801:2011 Ed2.2 OM2
  • OM3 50/125 compliant with ITU G.651, IEC 60793-2-10 Type A1a.2 and ISO/IEC 11801:2011 Ed2.2 OM3
  • OM4 50/125 compliant with IEC 60793-2-10 Type A1a.3 ISO/IEC 11801:2011 Ed2.2 OM4
  • OS1/OS2 9/125 compliant with ITU G.652.D, IEC 60793-2-50 Type B1.3 ISO/IEC 11801:2011 Ed2.2 OS2
  • Cable mechanical characteristics tested according to IEC 60794-1

Use

  • High data rate fbre optic backbones for building and campus
  • Suitable for splicing termination: installation with pigtails by fusion or mechanical splices.


OM2 50/125 µm
Type Length Diameter Ref No.
8 fbres, OM2 50/125, Loose tube, Up to 10Gbps ethernet supported2100m6.2 mm VDIC52208L


OM3 50/125 µm
Type Length Diameter Ref No.
OM3 50/125, Loose tube, 12 fbres525m6.2 mm VDIC42312L
Up to 40Gbps ethernet supported2100m VDIC52312L


OS1/OS2 9/125 µm
Type Length Diameter Ref No.
12 fbres, OS1/0S2 9/125, Loose tube,525m6.2 mm VDIC42512L
Up to 100Gbps ethernet supported2100m VDIC52512L


FL-C Tight buffered Fibre optic cables

Specifications

  • Compact and universal cables suitable for indoor and specifc outdoor installations:
    • Low Smoke Zero Halogen (LSZH) green coloured external sheath
    • UV resistant
    • dielectric
    • high tensile strength
    • rodent retardant
    • longitudinally watertight
  • Maximum pulling force: 1500 Newton (1800 Newton for 24FO)
    • longitudinally watertight
  • Rodent protection:
  • Minimum bending radius: OD x 10 (ex: 51mm for 5.1mm OD)
  • Ambiant air temperature (minimum & maximum)
    • for installation: -5° … +50°C
    • for operation: -20°… +70°
    • for storage: -40° … +70°
  • Tight buffered gel-free cable construction with 900 µm coating.
  • Flame retardant according to IEC 60 332-1, EN 50 265 2.1, NFC 32 070 2.1(Category C2). Fire retardant according to IEC 60 332-3 C, EN 50 266, NFC 32 070 2.2 (Category C1)

Performances

  • OM2 50/125 compliant with ITU G.651, IEC 60793-2-10 Type A1a.1 and ISO/IEC 11801:2011 Ed2.2 OM2
  • OM3 50/125 compliant with ITU G.651, IEC 60793-2-10 Type A1a.2 and ISO/IEC 11801:2011 Ed2.2 OM3
  • OM4 50/125 compliant with IEC 60793-2-10 Type A1a.3 ISO/IEC 11801:2011 Ed2.2 OM4
  • OS1/OS2 9/125 compliant with ITU G.652.D, IEC 60793-2-50 Type B1.3 ISO/IEC 11801:2011 Ed2.2 OS2
  • Cable mechanical characteristics tested according to IEC 60794-1

Use

  • High data rate fbre optic backbones for building and campus
  • Horizontal cable (FTTD Fibre to the desk) with the 2 fbres
  • Suitable for direct termination: installation with connectors (prefbred, cold-cured and/or heat-cured types).


OM2 50/125 µm
Type Length Diameter Ref No.
12 fbres, OM2 50/125, Tight buffered,525m6.7 mm VDIC42212T
Up to 10Gbps ethernet supported2100m VDIC52212T


OM3 50/125 µm
Type Length Diameter Ref No.
12 fbres, OM3 50/125, Tight buffered,525m6.7 mm VDIC42312T
Up to 40Gbps ethernet supported2100m VDIC52312T


OS1/OS2 9/125 µm
Type Length Diameter Ref No.
12 fbres, OS1/OS2 9/125, Tight buffered,525m6.7 mm VDIC42512T
Up to 100Gbps ethernet supported on long distance2100m VDIC52512T
